TC/American’s LOWERATORTM Transfer Crane
Streamlines Powder Coat Oven Cure
St. Michael, Minnesota: TC American Monorail supplies a custom-configured LOWERATORTM Transfer Crane with modifications to carry large loads directly into a 450 degree F powder coat oven, without setting the load down. The crane design utilizes a special carrier that attaches directly to a large workpiece and travels with it through the assembly process, interlocking with strategically placed spur rails at various stations along the route. The operator can engage positive mechanical rail interlocks in order to easily and safely transfer the load into separate bays for various operations, thus saving time and minimizing the potential for damage.

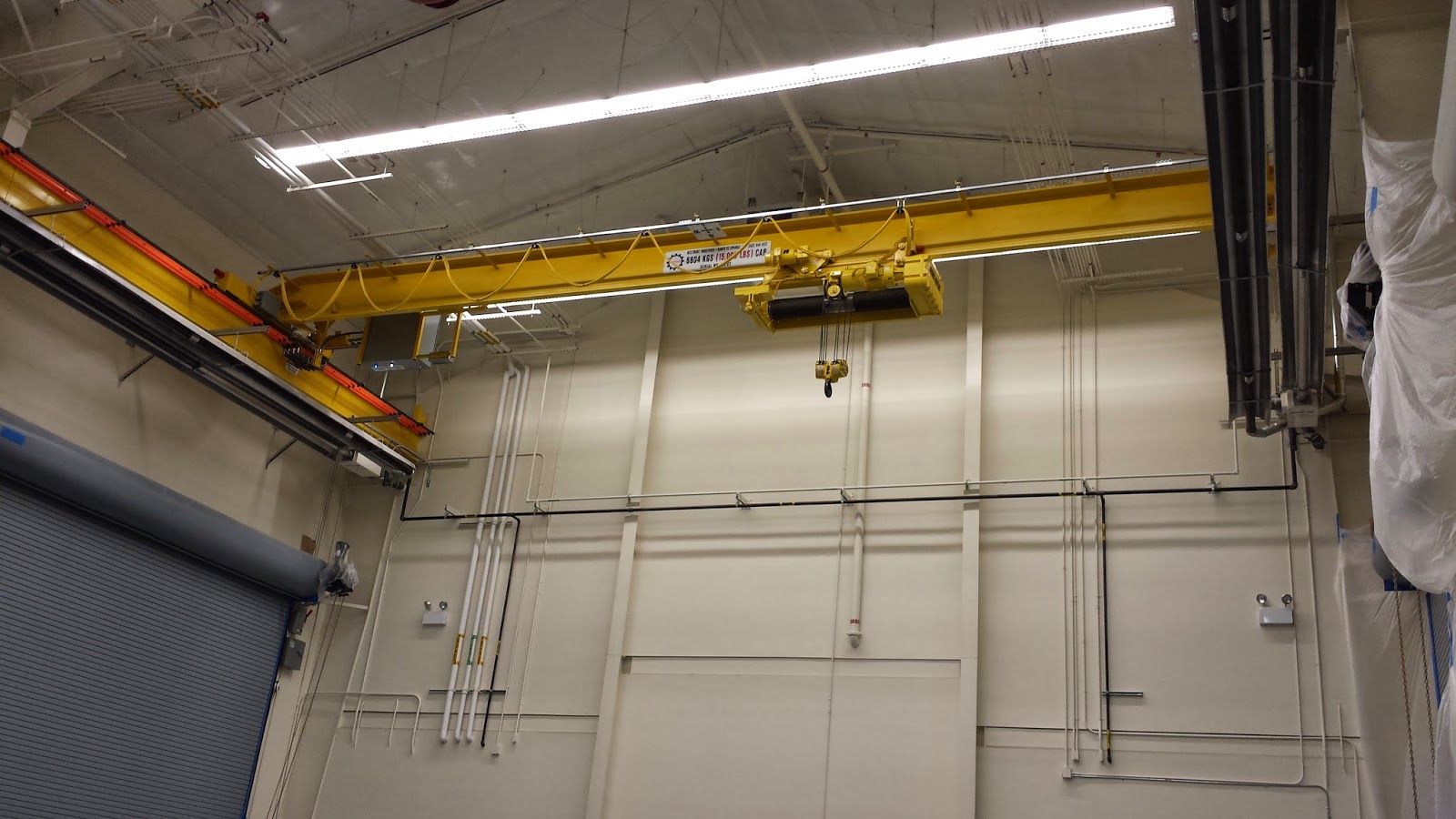

This installation handles very large steel weldments that would be difficult to transfer and set down repeatedly onto floor dollies for the various finishing operations involved. To handle the weldments smoothly and safely, a ten-ton LOWERATOR crane was developed, with a bridge rail measuring 32’ 10”. First, the weldments travel through the various assembly processes. Then, they proceed to a series of finishing stations for blast clean/surface prep and drying. Lastly, they are run though a powder coat application, 450 degree F° oven cure, and cool down. In each finishing station the weldment is transferred via interlocking spur rails to a separate bay for the pertinent operation. Once ready, the interlocking rails allow the load to rejoin the primary crane rail system and proceed to the next station. All of these operations are directed using a handheld wireless control. Since the carrier rail travels with the load through the entire process, the work piece is never set down until the finished product has gone through final inspection and is ready for shipping. The LOWERATOR concept avoids unnecessary handling and potential operator injury. It also ensures uniform powder coat cure temperatures by eliminating the need for an oven roof slotted for an overhead hoist.
The LOWERATOR crane has 15 fpm lift speed and 18 feet of vertical travel. It uses a mechanical interlocking guide system to allow the load to swing freely when lowered, then automatically return to its home position when raised. This enables unimpeded operator access during the various work operations and secure re-attachment to the overhead rail for transfer to the next station. Other safety provisions include: overload limits, upper/lower travel limits, wire rope equalizers, backup manual control pendant, and thermal protection. It also features a male/female rail interlock sensor that ensures two adjoining rails are properly aligned before they can be actuated.
Built for long service, the system utilizes extra beefy end trucks rated for up to 19 tons and 50 fpm travel speed. The carrier rail is coated to withstand occasional exposure to cleaning chemicals and regular exposure to high temperatures. This is achieved by the use of epoxy paint, and bearings that utilize high-temperature non-silicone lubricants with drip pans to prevent load contamination. “The LOWERATOR’s robust design streamlines the entire assembly process,” reports Josh Stern, TC American Sales Manager, “its unique design features minimize unnecessary handling, damage, and costs.” The LOWERATOR crane system can be configured in many different ways to accommodate various requirements.
